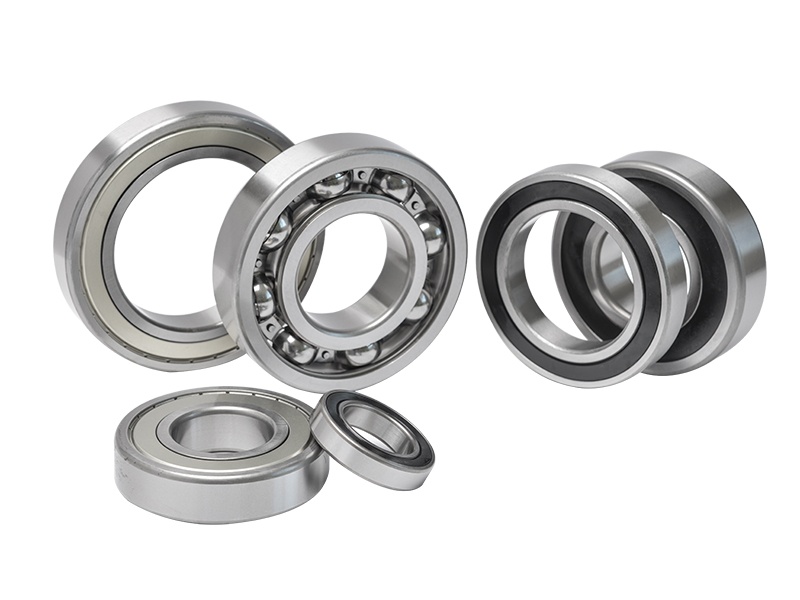

常規深溝球軸承 63系列
產品系列：常規深溝球軸承
| 型號 | 外形尺寸 | 倒角 | 額定載荷（KN） | 極限轉速 (rpm) | 重量 (kg) |
| d | D | B | 動負荷 Cr | 靜負荷 Cor | 脂 | 油 |
| ?6300 OP/ZZ/2RS | 10 | 35 | 11 | 0.60 | 8.20 | 3.50 | 23000 | 27000 | 0.053 |
| 6301 OP/ZZ/2RS | 12 | 37 | 12 | 1.00 | 9.70 | 4.20 | 20000 | 24000 | 0.060 |
| 6302 OP/ZZ/2RS | 15 | 42 | 13 | 1.00 | 11.40 | 5.45 | 17000 | 21000 | 0.082 |
| 6303 OP/ZZ/2RS | 17 | 47 | 14 | 1.00 | 13.50 | 6.55 | 16000 | 19000 | 0.115 |
| 6304 OP/ZZ/2RS | 20 | 52 | 15 | 1.10 | 15.90 | 7.90 | 14000 | 17000 | 0.144 |
| 6305 OP/ZZ/2RS | 25 | 62 | 17 | 1.10 | 21.20 | 10.90 | 12000 | 14000 | 0.232 |
| 6306 OP/ZZ/2RS | 30 | 72 | 19 | 1.10 | 26.70 | 15.00 | 10000 | 12000 | 0.360 |
| 6307 OP/ZZ/2RS | 35 | 80 | 21 | 1.50 | 33.50 | 19.10 | 8800 | 10000 | 0.457 |
| 6308 OP/ZZ/2RS | 40 | 90 | 23 | 1.50 | 40.50 | 24.00 | 7800 | 9200 | 0.630 |
| 6309 OP/ZZ/2RS | 45 | 100 | 25 | 1.50 | 53.00 | 32.00 | 7000 | 8200 | 0.814 |
| 6310 OP/ZZ/2RS | 50 | 110 | 27 | 2.00 | 62.00 | 38.50 | 6400 | 7500 | 1.070 |
| 6311 OP/ZZ/2RS | 55 | 120 | 29 | 2.00 | 71.50 | 45.00 | 5800 | 6800 | 1.370 |
| 6312 OP/ZZ/2RS | 60 | 130 | 31 | 2.10 | 82.00 | 52.00 | 5400 | 6300 | 1.730 |
| 6313 OP/ZZ/2RS | 65 | 140 | 33 | 2.10 | 92.50 | 60.00 | 4900 | 5800 | 2.080 |
| 6314 OP/ZZ/2RS | 70 | 150 | 35 | 2.10 | 104.00 | 68.00 | 4600 | 5400 | 2.520 |
